Lapidary Machine CabPro4

CabPro4 - 4" wheel model

Do you do lapidary work?
This is a perfect system for you if you prefer working on smaller 4" wheels.


With our CabPro4 now you can take your lapidary shop with you anywhere you go. The CabPro4 is powerful & portable and the only all-In-One Lapidary System that is 12V-DC Battery powered. Take your own machine on your next RV trip, your club, or to your next Rock-Hounding Outing.

If you are a lapidary professional or enthusiast you will love this machine to saw, trim, grind, and polish your gemstone material anywhere anytime, no power outlet needed.

Powerful high torque 12V-DC operation - Flexible Wheel layout & Spacing - 4" or 6" Model with variable speed and digital readout - anodized 6061 aluminum base - ultra balanced stainless steel shaft. This is an amazing smooth running machine that is an absolute joy to work with. You got to have one!

*Made in the USA

FOR QUESTIONS OR  PRICING CALL or TEXT : 808-987-4233

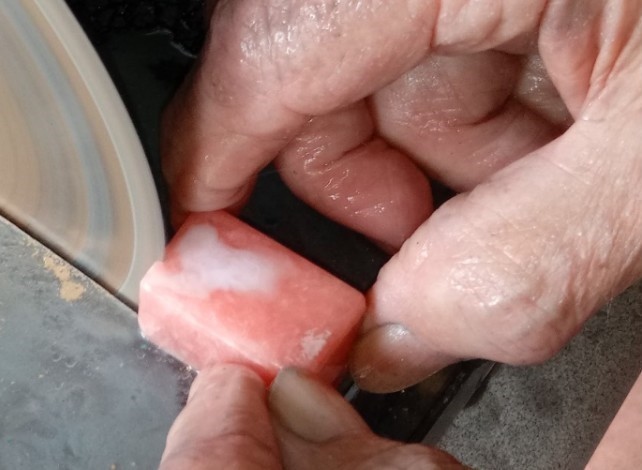

CabPro6 - Cut beautiful gemstones

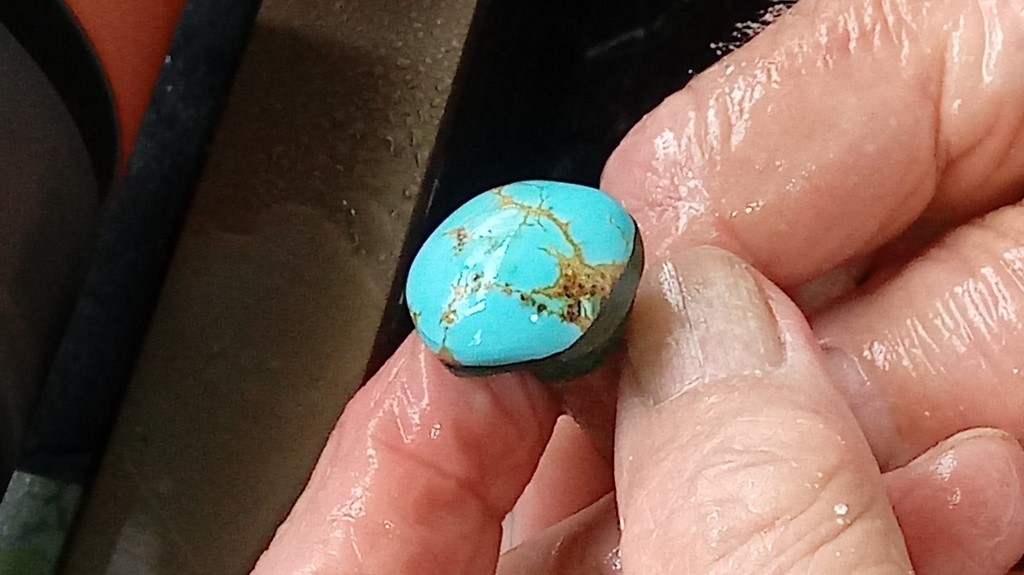

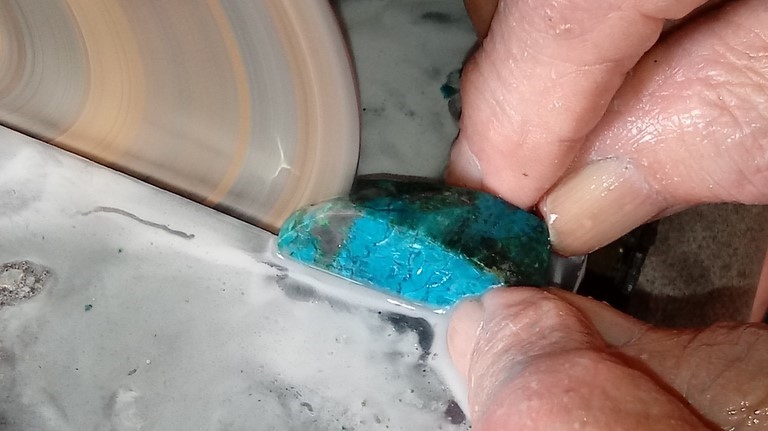

The CabPro6 lets you cut beautfiul gemstones.  Shown is a piece of California Turquoise.  We are always available for questions regarding the cutting, trimming, grinding, or polishingof your gemstone material.. afterall.. we do have a lifelong passion for the art of larpidary ourselves and  love to share our expertise..

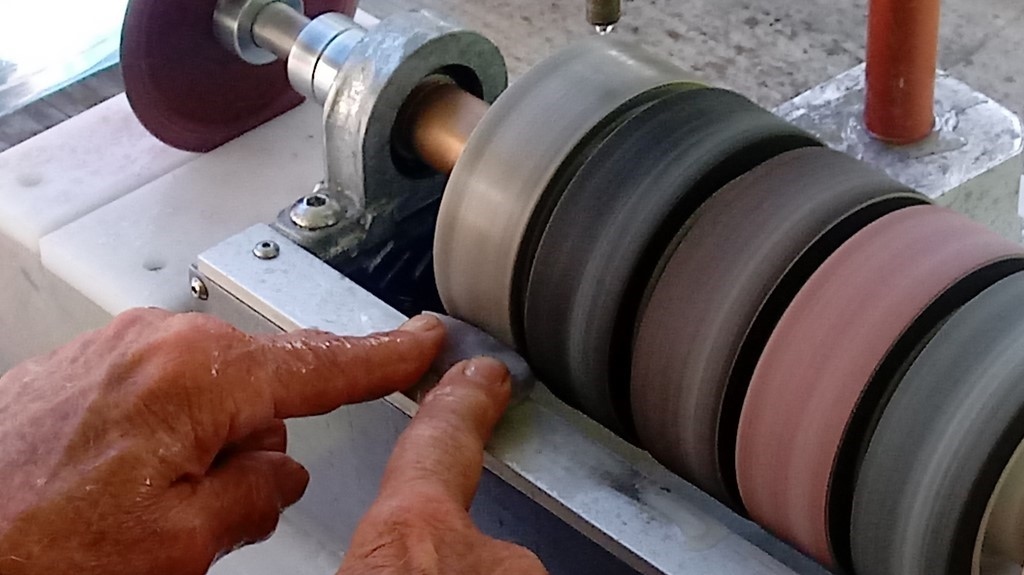

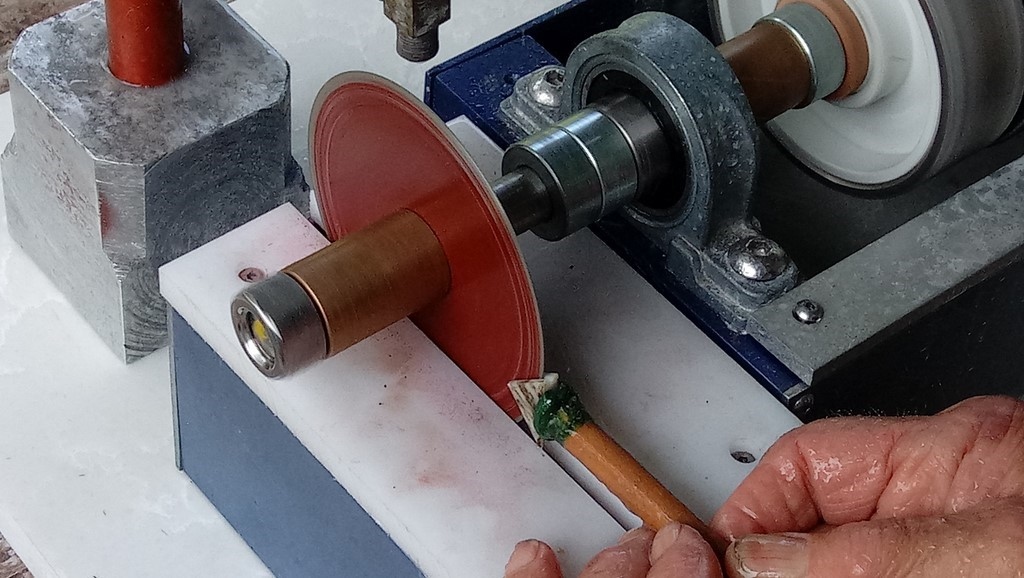

CabPro6 - Zero clearance Blade Setup

With the smooth operation of the machine and the Zero clearance saw blade table you can cut the finest gemstone materials while minimizing loss.

Use a 4" or 6" blade

You can operate a standard 6" blade or for your finest materials mount an ultra thin 4" blade onto the shaft. Any blade made for a 5/8" arbor will fit.

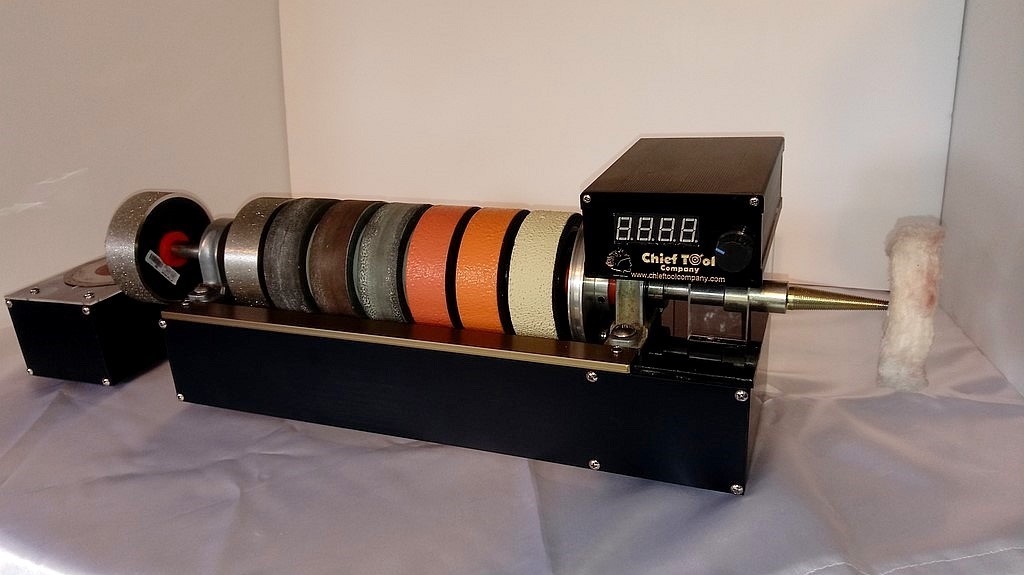

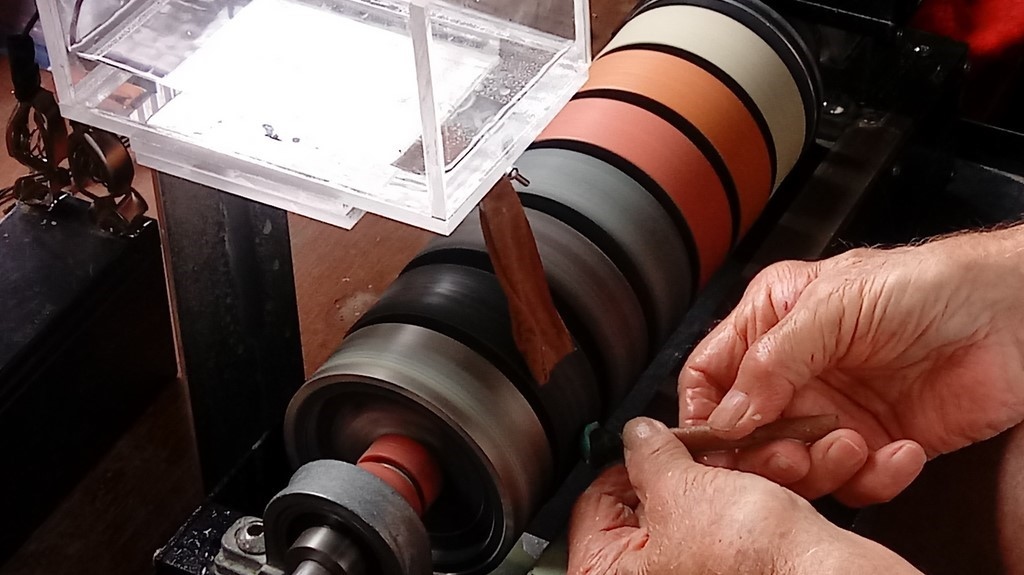

Flexible wheel loading

Diamond Wheel ? Resin Wheel? Both? .. not problem.. as long as the wheel is for a 5/8" arbor you can create any combination of wheels you like.  If you need larger spacing between the wheels you can just install the standard 4 , or you can go to our own preferred preference, the 6 wheel layout as shown.

Compact machine

The total machine weighs only 17-20 pounds, depending on wheel layout, so it is easily moved and a truly portable solution.  Take it to your club, your next RV Trip, or on your next Rock-hounding outing.  Always enjoy your own machine.  No power outlet needed.

Adjustable Speed

The CabPro6 features fully adjustable speed. Slow down to 200 RPM or increase your speed to 2000 RPM.  Now you can set your preferred desired speed for any stone.

Flat Lap Attachment

You can attach any lap or wheel that is made to be fitted on a 5/8" shaft on the left or right side of the machine.  In this picture we attached a 6" flat lap on the right side of the machine with a mounted leather pad.  Pefect for polishing with the use with Cerium Oxide.

Financing Available

Now you can pay with Paypal Credit.  Split your payment over 4 or 6 month.  Longer Term Financing avaialble upon request.

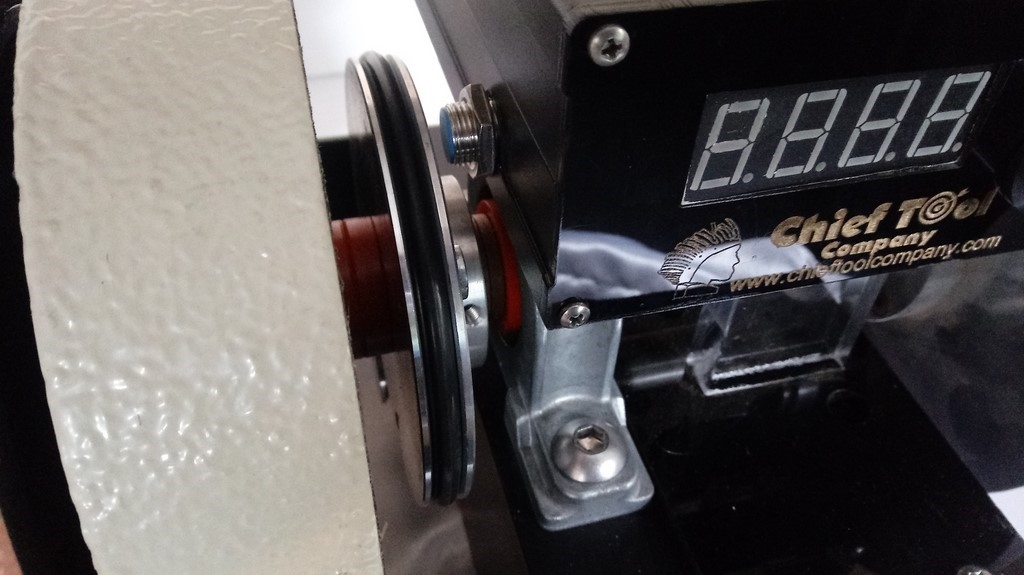

Smooth Drive Wheel Operation

The CabPro6 is operated with a solid aluminum drivewheel and belt combo.  Smooth and less vibration and less noise than other machiens.

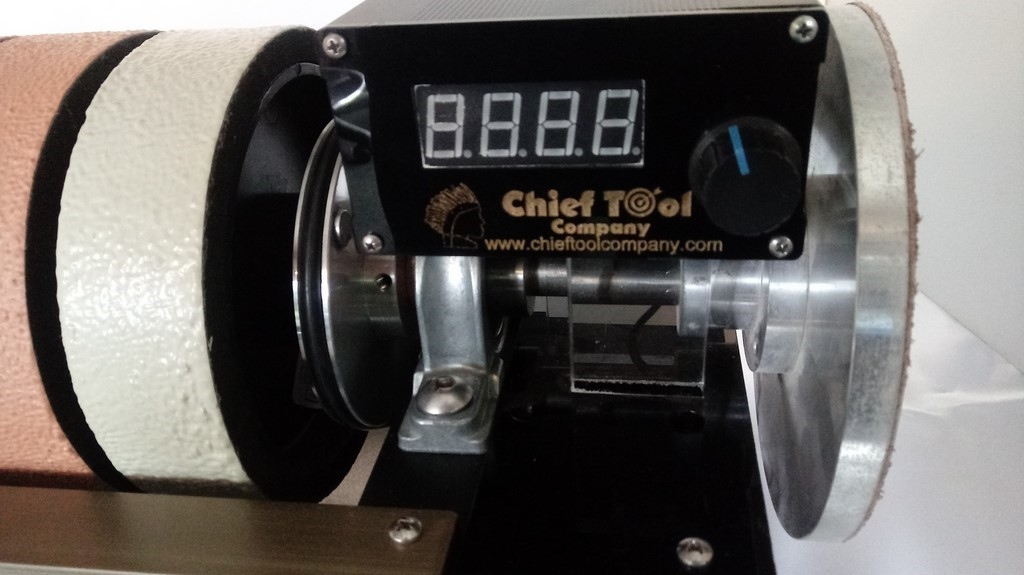

Digital Readout

 The large digital readout makes it always easy to see what your RPM setting is.


Paragraph title

The CabPro6 comes with a variety of accessories like a spindle attachement for use with any buffing wheels. The solid aluminum flat lap flat lap can hold any kind of stick-on sanding or polishing discs.

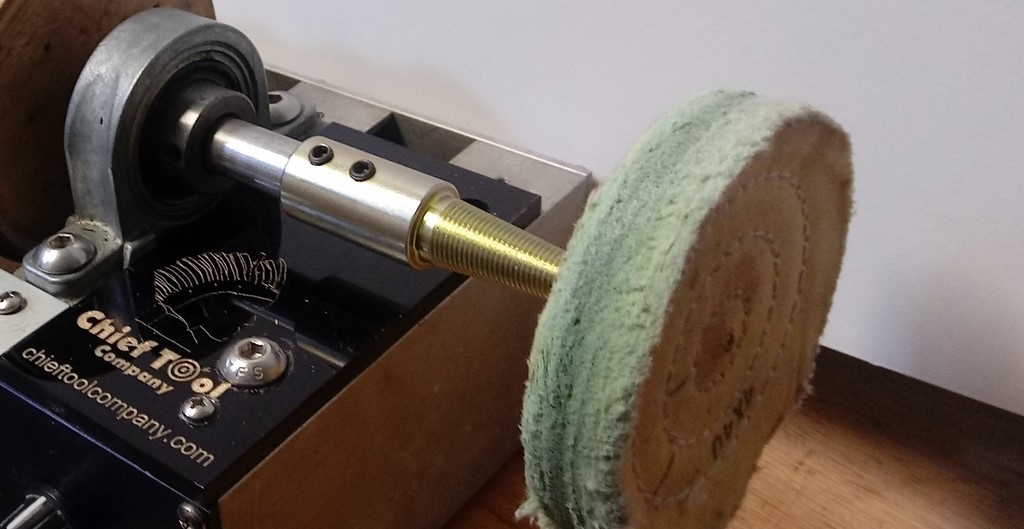

Spindle Attachment

Spindle attachment with 6" polishing wheel.

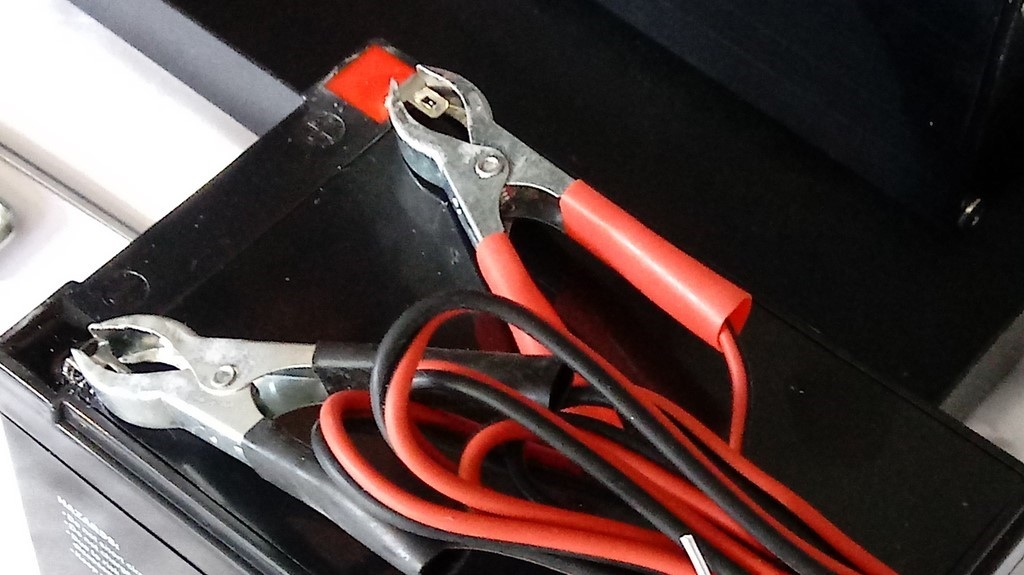

12V-DC Battery Powered

Fully Portable - No power outlet needed.  Power Cables to connect to the battery are included providing hours of lapidary enjoyment.

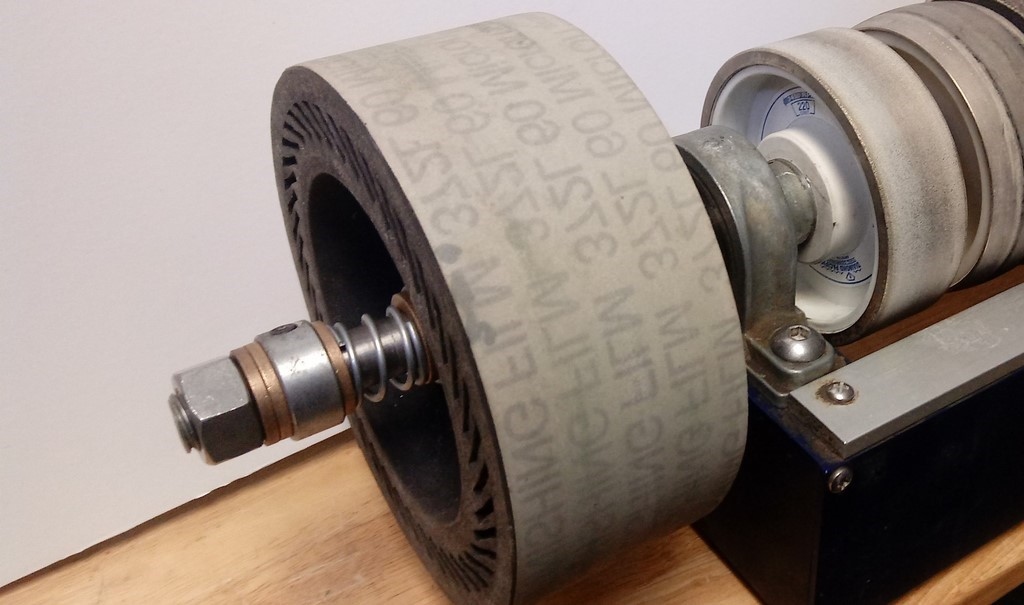

Expanding Drum

Instead of operating the saw on the left side of the CabPro6 you can also mount an expanding drum to use with a variety of sanding belts.

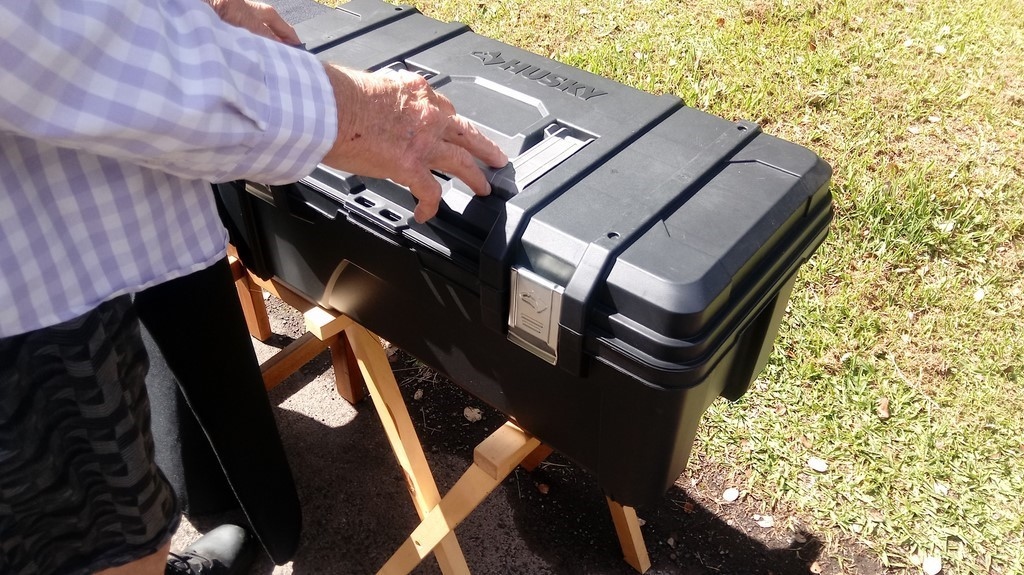

Your CabPro4 is portable...

Your all-in-one CabPro6 lapidary system fits in this standard toolbox, so it is easily portable to take it anywhere you would like to take it.  Your next club meeting ( always great to bring your own machine ), your next RV trip, or to your next rockhounding outing at a mine.  Be Flexible and enjoy working on your own machine wherever you go.

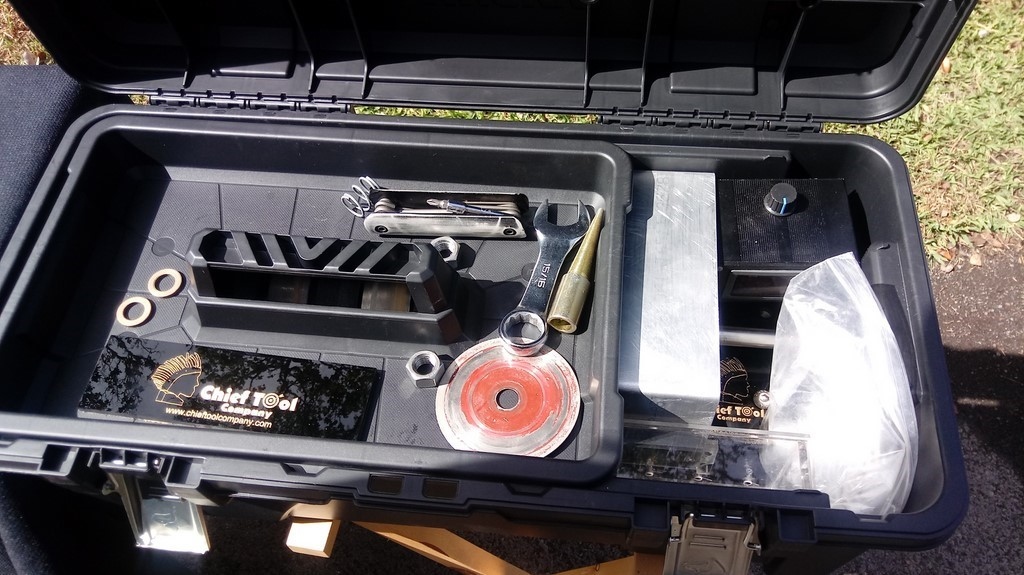

All necessary tools included...

All tools for the CabPro6 and accessories fit right inside the carry box.

More Information:

For more information watch some of our simple videos or slideshows:

Video - Cutting and trimming stones

Video - Grinding Stones

Video - Adjustable Speed

Slideshow - Unpacking your system

Slideshow - Attach Power

Slideshow - Saw Blade Installation

Slideshow - Change from Saw to Wheel

Slideshow - Flat Lap Installation

Slideshow - Removing and Reloading Wheels

Made in the USA
FOR QUESTIONS OR  PRICING CALL or TEXT : 808-987-4233

CabPro4 Specifications:

4" Wheel Model

Professional Portable Lapidary Machine :

  • Speed Controller: Variable ( 200 RPM - 2,000 RPM)
  • Display: Digital RPM
  • Wheel Size: 4" ( Pre-loaded wheel layout to your selection )
  • Motor Shaft size: 5/8"
  • Spring loaded clutch system
  • Cutting Table: Zero Clearance Blade System
  • Power: 12V DC ( Works of a 12V battery or ciggarette lighter adapter for hours!)


The 6" All-In-One System Includes:

  • 4" x 1 1/2" Diamond Grinding Wheel - 220 Grit
  • 4" x 1 1/2" Soft Nova Wheel - 600 Grit
  • 4" x 1 1/2" Soft Nova Wheel - 1200 Grit
  • 4" x 1 1/2" Soft Nova Wheel - 3000 Grit
  • 4" x 1 1/2" Soft Nova Wheel - 8000 Grit
  • 4" x 1 1/2" Soft Nova Wheel - 14,000 Grit
  • * wheels are with 1" hole and adapter for 5/8" shaft
  • Solid Aluminum Drive Pulley
  • * Soft Nova Wheels are MADE IN THE USA



ACCESSORIES:

  • 6" Polishing Lap
  • Arbor Adapter for Polishing Lap
  • 4" Saw attachement including 4" 0-clearance blade table
  • OPTIONAL: 6' saw table for 6" saw
  • Spindle Taper for use with 4" or 6" Buffing Wheels
  • Precision balanced 5/8" Stainless Steel Arbor
  • Drip Tank ( single spicket that easily moves where needed ).
  • Drip Tray ( one for main machine, a separate one for the saw when used ).
  • Complete Toolkit & wrench for changing wheels, saw blade, etc.
  • Custom Wheel Packages available upon request



DIMENSIONS / WEIGHT:

  • Machine Dimensions w/ shaft: 24" wide x 8" deep x 10" high
  • Main Base w/o drip tank: 18" wide x 8" deep x 8" tall
  • Saw Base 8" deep x 4" wide ( for use with  4" sawblade )
  • Weight: Machine only (w/o saw attachment): approx. 17 lbs.
  • Shipping Weight: 35 lbs.


MATERIAL:

  • Base: Hard Anodized 6061 Aluminum and Stainless Steel Hardware
  • Drip Tank: Crystal Clear Acrylic with single drip spicket and moveable Aluminum Stand
  • Drip Spicket: Stainless Steel



POWER:

  • Our machine works of any standard 12V-DC Battery.
  • The type of battery we include with our machine is a powerful compact 12V battery only 4"x6"5". Use any standard battery charger to recharge.
  • For extended working hours we recommend to operate with a 2 battery swap system so you are always ready to run your machine. The advantage of operating with a battery is that the machine can draw as much power as it needs when under load.


FEATURES:

  • Portable
  • Powerfull High Torque
  • Professional Quality
  • Extreme Accurate Cutting with an "Easy Glide" cutting table
  • Utra smooth running machine that is quiet and minimizes vibration
  • Ultra balanced shaft with professional quality ball bearings
  • Versatile and Adaptable
  • Made in the USA
  • Developed and built by an award winning Gem Cutter and Certified Professional Gemologist "Stoneman Free"
